Installing the trim for the head-up display
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

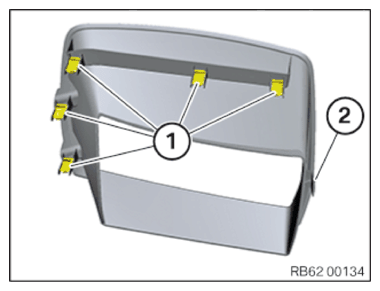

- Check clamps (1) and detents (2) for damage, replace them if necessary.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

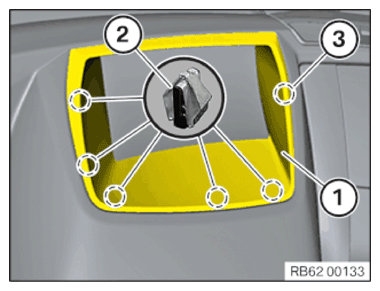

- Correctly position the trim (1) for the Head-Up Display and click it home on the clamps (2) and the snap-in lug (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
