Replacing the seat belt clip (M4 2021-2023)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 040

NOTE: If the position of the seat belt clip (1) cannot be identified, the position of the seat belt clip on the opposite side of the vehicle is used.

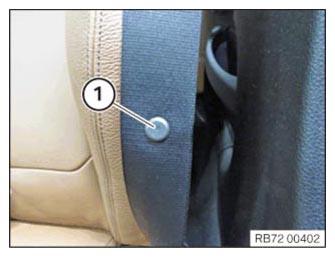

Insert the belt clip (1) in the previous position on the safety belt (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount the counterpiece (1).

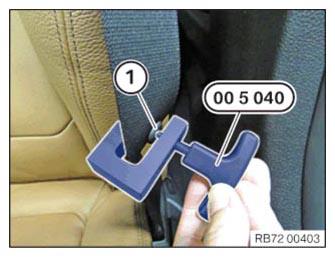

Press the belt clip with special tool 00 5 040.

Check that the belt clip and counterpiece (1) are firmly seated.

NOTE: If the seat belt clip is pressed too firmly, the counterpiece may loosen (1).

Courtesy of BMW OF NORTH AMERICA, INC.
