Remove the telematics control module
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Convertible top is open.
Convertible top compartment lid is in the open position.
Wind deflector is removed.
Rear seat backrest is folded.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVE REAR SEAT BENCH .
- Refer to REMOVING THE HEAD RESTRAINT ON REAR LEFT AND RIGHT .
- Refer to REMOVING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
- Refer to REMOVING THE TRIM PANEL AT THE TOP OF THE ROLLOVER PROTECTION SYSTEM .
- Refer to REMOVING THE THROUGH-LOADING SYSTEM TRIM PANEL .
- Refer to REMOVING THE TRIM PANEL AT THE BOTTOM ON THE ROLL-OVER PROTECTION SYSTEM .

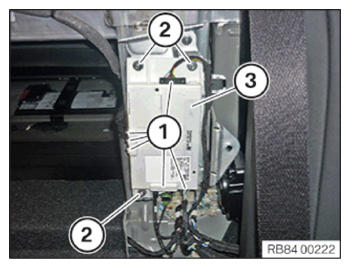

- Unlock and disconnect connector (1).
- Loosen nuts (2).
- Remove telematics control module (3).
