Install the telematics control module
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

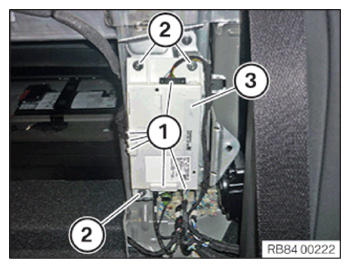

- Correctly position the telematics control module (3).
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Telematics control module on holder | ||
| Nut | tightening torque | 3.3 Nm |
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING THE LOWER TRIM PANEL ON ROLLOVER PROTECTION SYSTEM .
- Refer to INSTALLING THE TRIM PANEL ON THE THROUGH-LOADING SYSTEM .
- Refer to INSTALLING THE UPPER TRIM PANEL ON ROLLOVER PROTECTION SYSTEM .
- Refer to INSTALLING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
- Refer to INSTALLING REAR LEFT AND RIGHT HEAD RESTRAINTS .
- Refer to INSTALLING/REPLACING REAR SEAT (M4 CONVERTIBLE)
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
