Removing the seat-position sensor on the front seat

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING FRONT SEAT .

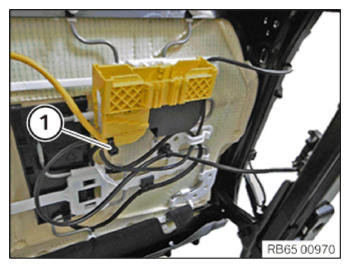

Release cable tie (1).

Courtesy of BMW OF NORTH AMERICA, INC.

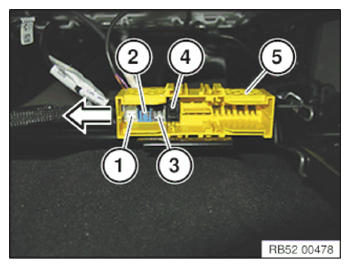

Unlock the connectors in the sequence (1) to (4) and pull one after the other out of the connector housing (5) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

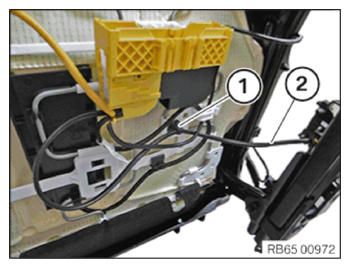

Detach the cable bracket (1) from the seat mechanism.
If applicable, unclip the other cable brackets.
Put the cable (2) to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

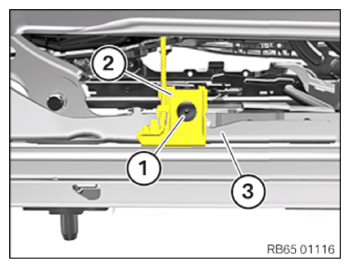

Drill out the rivet (1).

Guide the seat-position sensor (2) upward from the seat mechanism (3) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
