Install the seat position sensor on the front seat
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

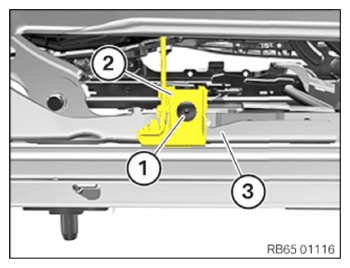

- Feed in and correctly position the seat position sensor (2) from above on the seat mechanism (3).
- Fasten the rivet (1).

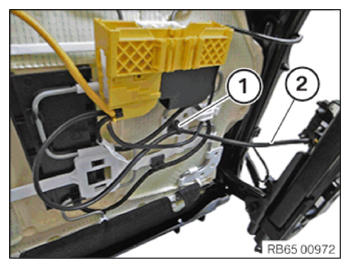

- Correctly position the cable (2).
- Fasten the cable bracket (1) on the seat mechanism.
- If applicable, fasten the other cable brackets.

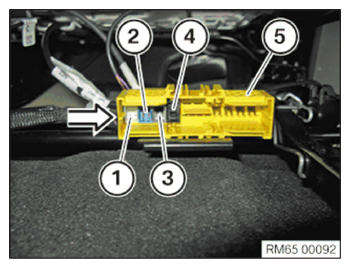

- Correctly insert the connectors in the sequence (1) to (4) in the arrow direction into the connector housing (5) and lock.

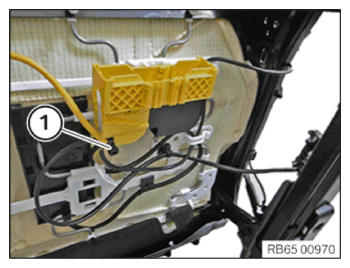

- Secure cable tie (1).
Follow-up work
- Refer to INSTALLING FRONT SEAT .
