Remove the rear mid-range speaker

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.

Protect surfaces from damage.

NOTE: Description is for left component only. Procedure on the right side is identical.

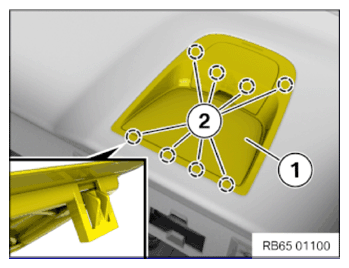

Release cover (1) from detents (2) using a suitable special tool from the set of special tools 0 493 752 (00 9 329) .
Remove cover (1) from the storage compartment.

Courtesy of BMW OF NORTH AMERICA, INC.

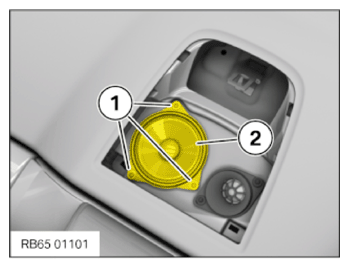

Loosen screws (1).
Lift mid-range speaker (2) to reach the underlying plug connections.

Courtesy of BMW OF NORTH AMERICA, INC.

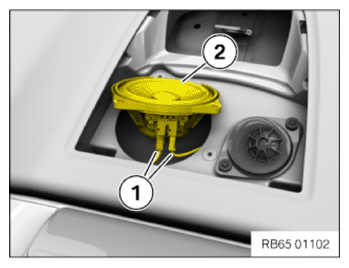

Unlock and disconnect plug connections (1).
Remove mid-range speaker (2).

Courtesy of BMW OF NORTH AMERICA, INC.
