Installing the rear mid-range speaker
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

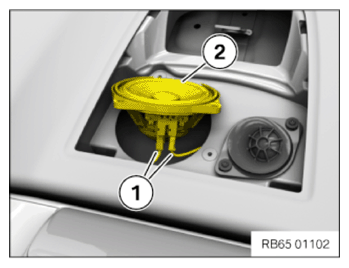

- Position the mid-range speaker (2).
- Connect connectors (1) and lock.

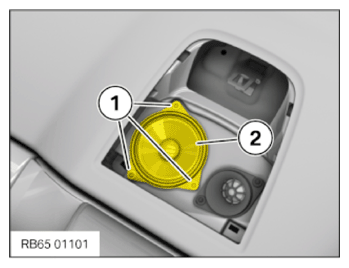

- Correctly position the mid-range speaker (2).
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Speaker to rear shelf/support/head restraint | ||
| Screw | Tightening torque | 1.8 Nm |

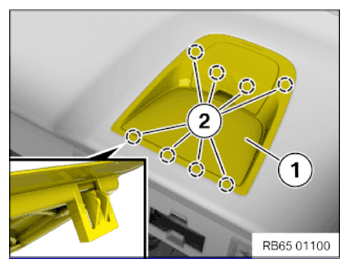

- Position the cover (1) from the storage box.
- Clip in cover (1) with the detents (2) in the storage box.
