When replacing the speaker holder: Remounting the mid-range speaker
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

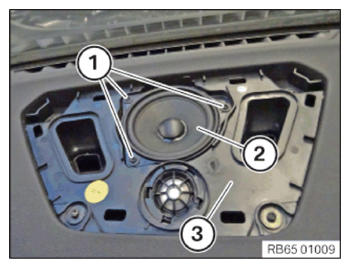

- Loosen screws (1).
- Remove the mid-range speaker (2) from the speaker holder (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Install the mid-range speaker (2) in the speaker holder (3).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Loudspeaker to dashboard/loudspeaker to door |
| screw |
Tightening torque |
1.8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
