Removing the speaker holder on the dashboard
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .

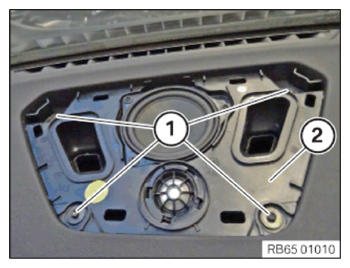

- Loosen screws (1).
- Slightly pull out the speaker holder (2) with the loudspeakers and fold to the side.

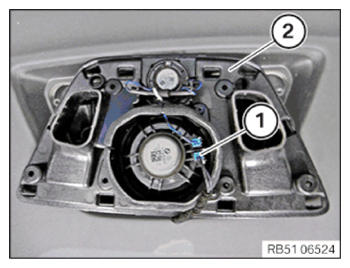

- Unlock plug connection (1) and disconnect.
- Remove the speaker holder (2).
