Install the speaker holder on the dashboard
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

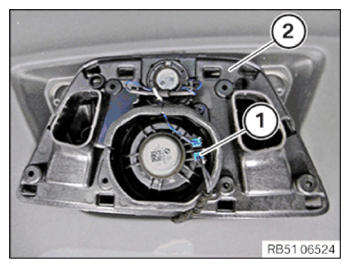

- Position the speaker holder (2).
- Connect plug (1).

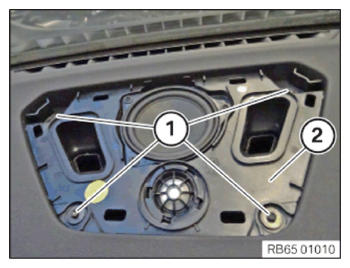

- Install the speaker holder (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Loudspeaker to support/support to dashboard/support to body | ||
| screw | Tightening torque | 1.8 Nm |
Follow-up work
- Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
