Remove the mid-range speaker from the dashboard
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .

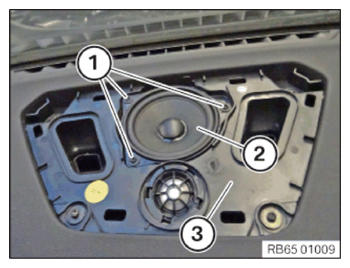

- Loosen screws (1).
- Lift the mid-range speaker (2) off the speaker holder (3).

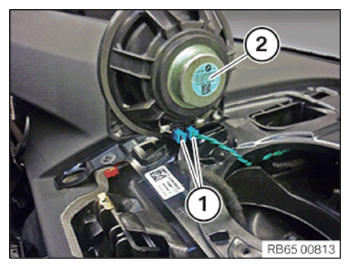

- Disconnect the plug connections (1) and remove the mid-range speaker (2).
