Install tweeter

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Check

Check the detents (1) on the mirror triangle for damage.

G15341197

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detents (1) are damaged.

Measure

Replace the mirror triangle.

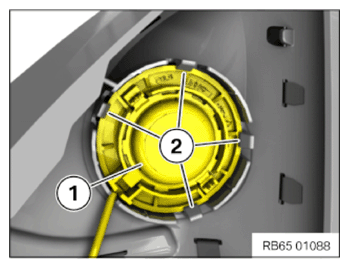

Insert the tweeter (1) and clip in to the detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.

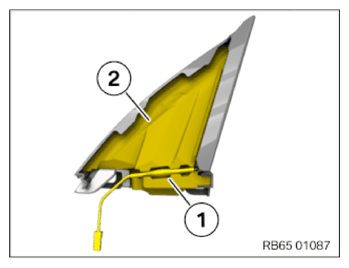

Install the foam part (2).
Clip in the resistance (1) with the cable in the foam part (2).

G15341199

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE MIRROR TRIANGLE .
Refer to INSTALLING FRONT DOOR TRIM PANEL .
