Replacing the receiver audio module (RAM)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

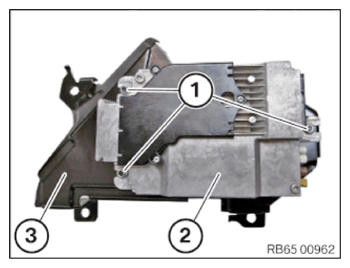

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Loosen nuts (1) .
- Remove the receiver audio module (RAM) (2)
from the holder (3)
.
- Replace the receiver audio module (RAM) (2)
.
Parts: Receiver audio module (RAM)
- Fit the receiver audio module (RAM) (2) on the holder (3) .
- Tighten nuts (1) .
TIGHTENING TORQUES SPECIFICATION
| Amplifier/RAM to holder | ||
| M5 screw | Tightening torque | 3 Nm |
| Nut | Tightening torque | 3 Nm |
