Installing the Receiver Audio Module (RAM)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

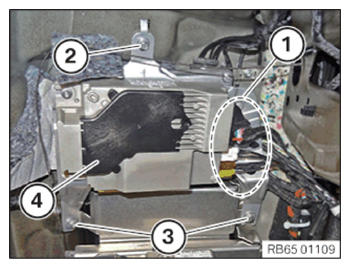

- Guide in RAM (4) with the holder and position it correctly.
- Tighten nuts (3) .
TIGHTENING TORQUES SPECIFICATION
| Holder to body | ||
| Nut | tightening torque | 6 Nm |
| Screw | tightening torque | 6 Nm |
- Tighten down screw (2) .
TIGHTENING TORQUES SPECIFICATION
| Holder to body | ||
| Nut | tightening torque | 6 Nm |
| Screw | tightening torque | 6 Nm |
- Secure all the cable brackets in area (1) .
- Connect and lock all connectors in the area (1) .
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
