Installing the Receiver Audio Module (RAM)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

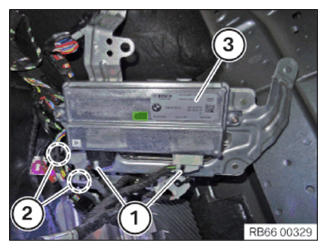

- Feed in and install the Receiver Audio Module (RAM) (3) with the bracket.
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Holder to body | ||
| Nut | tightening torque | 6 Nm |
| Screw | tightening torque | 6 Nm |
- Connect and lock all connectors in the area (1).
For equipment specification with Parking Assistant Plus (5DN): Install the TRSVC control unit
Install the TRSVC control unit

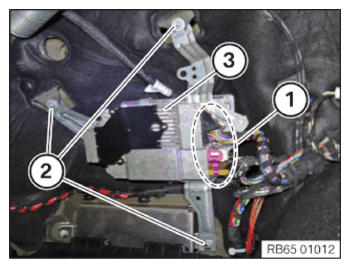

- Feed in and position the TRSVC control unit (3) with the holder.
- Engage the detents (2) for the cable.
- Connect all connectors (1) and lock.
- Turn over the TRSVC control unit (3) with the holder.

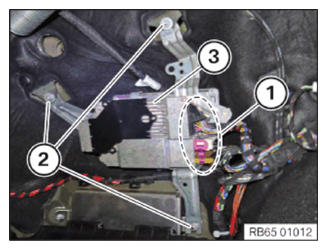

- Feed in and correctly position the receiver audio module (RAM) (3) with the holder.
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Holder to body | ||
| Nut | tightening torque | 6 Nm |
| Screw | tightening torque | 6 Nm |
- Connect and lock all connectors in the area (1).
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL, LEFT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
