Frame Reference Body Dimensions REH-Hin-P-4100-G20 - V.3 (M4 2021-2023)
General Information, Frame Reference Dimensions
The checkpoints shown serve to check the body and the set of attachments.
Dimensions in mm.
Dimension tolerances are:≤ 1000 mm ± 1.5 mm, ≥ 1000 mm ± 2.5 mm
The specified dimensions always refer to the center point of the bore or screw.
Measuring points on the right side of the vehicle are labeled with capital letters.
Measuring points on the left side of the vehicle are labeled with lowercase letters.
If only one measuring distance is specified, the measuring points on the left and right are symmetrical.
The views display 3-dimensional measurements.
3-Dimensional Measurements:
straight distance between 2 measuring points
Adjust both gauge tips of the beam compass 1 to the same height.
Measuring Tool:
Carry out measurements using the beam compass 1.
If measurement with a beam compass is not possible, use a tape measure.
If tape measure is used, kinks and twisting should be avoided.
Adjust both gauge tips 2 of the beam compass 1 to the same height.

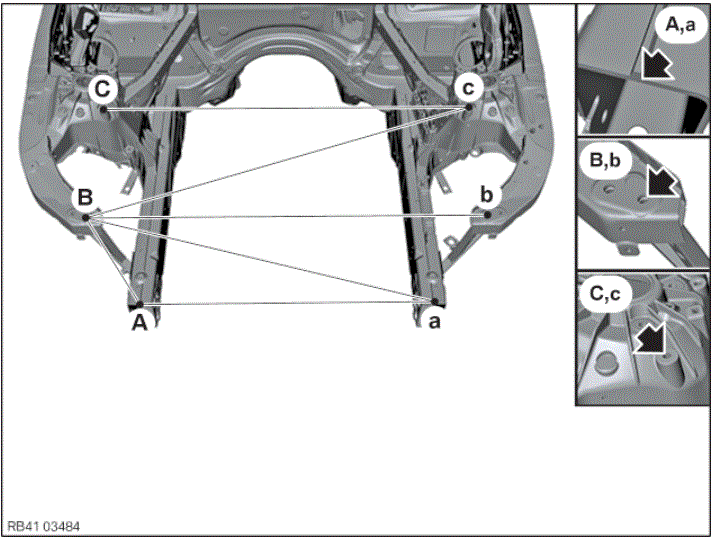

Frame Reference Dimensions For The Front End 3-Dimensional
Frame reference dimensions, front end
- Check the following frame reference dimensions on the vehicle:
A-a B-b A-B, a-b A-b, B-a C-c B-c, C-b 827 1067 303 987 1049 1113

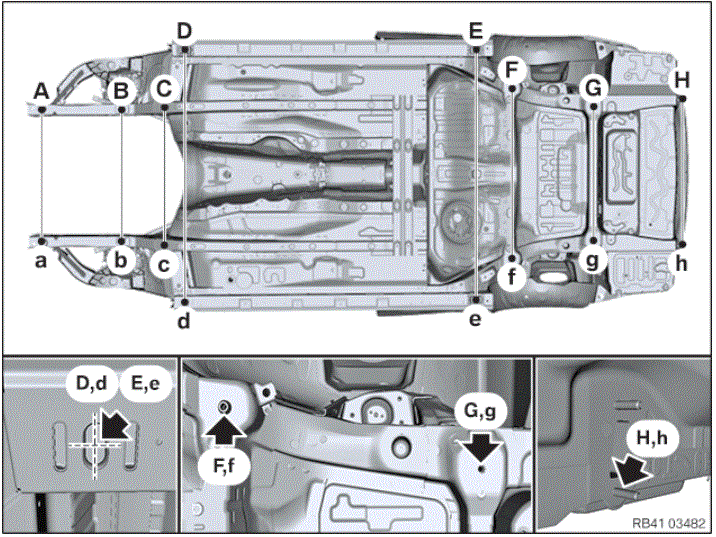

Frame Reference Dimensions For The 3-Dimensional Floor Assembly Group (Part 1)
Frame reference dimensions of floor assembly group 1
- Check the following frame reference dimensions on the vehicle:
A-a B-b C-c D-d, E-e F-f G-g H-h 842 834 850 1548 1088 862 942

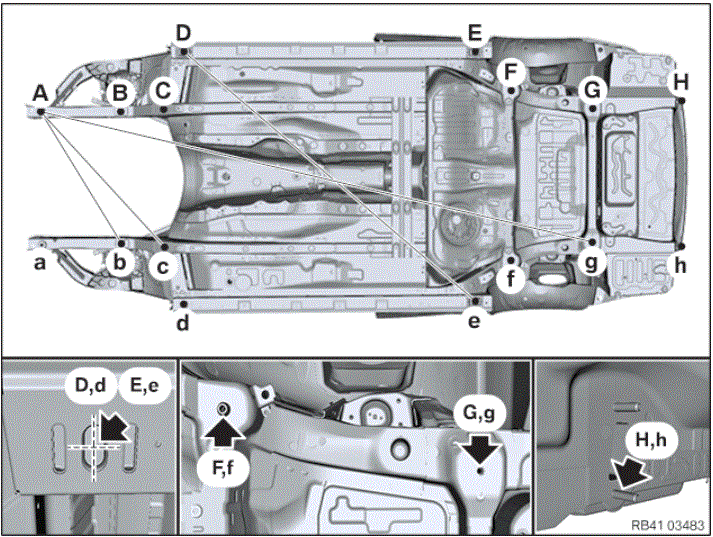

Frame Reference Dimensions For The 3-Dimensional Floor Assembly Group (Part 2)
Frame reference dimensions of floor assembly group 2
- Check the following frame reference dimensions on the vehicle:
a-B, A-b a-C, A-c a-G, A-g d-E, D-e 975 1166 3603 2361
