Section 284 (Collision - Body Panel Repair (1 Of 2) (G82 & G83))
>>
41 13 Partition Panels
>>
41 13 510 Replacing Engine Compartment Bulkhead At Left (Front Wheel Well Detached) (M4 2021-2023)
>>
Installing Engine Bulkhead
Installing Engine Bulkhead
WARNING:
This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Position new part.

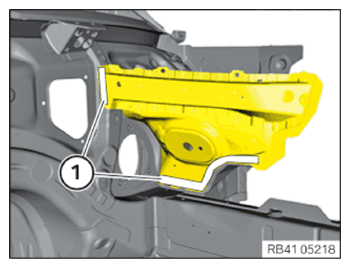

Weld the new part in the area (1).
Courtesy of BMW OF NORTH AMERICA, INC.

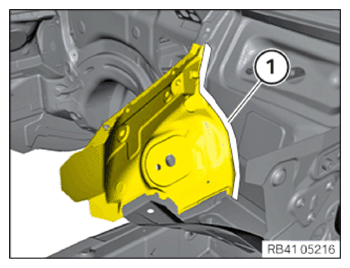

Weld the new part in areas (1).
Courtesy of BMW OF NORTH AMERICA, INC.
