Preparing New Parts

Preparing the left side member

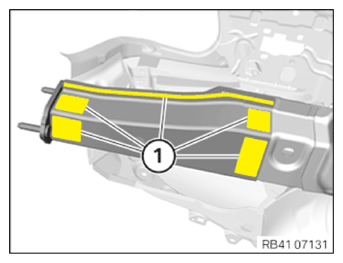

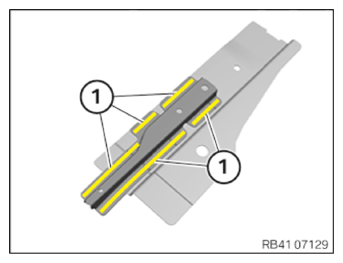

• Position the new parts and prepare for welding in areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

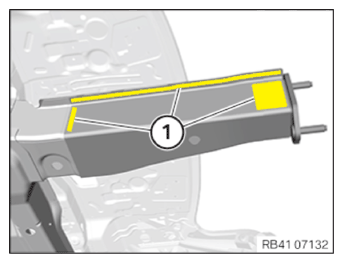

• Adjust new parts to fit with alignment bracket or universal fixture and secure.
• Prepare the new parts for welding in the areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

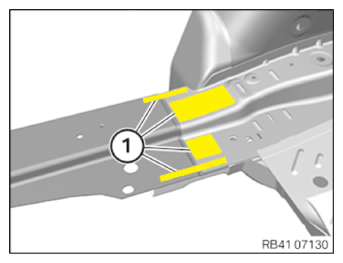

• Adjust the new parts and prepare for welding in areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

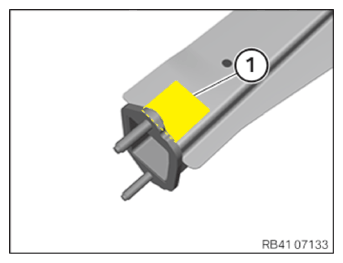

• Prepare the new parts for welding in the areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

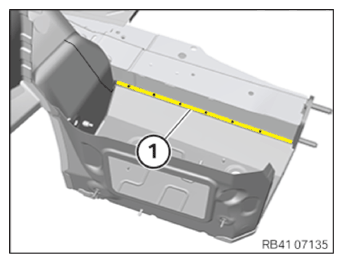

• Prepare the new parts for welding in the area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Preparing new parts, left side luggage compartment floor

  NOTE: TECHNICAL INFORMATION
  Adhesive technology in the area of the outer skin (not for structural adhesion):
  The bonding surfaces of the new parts may not sharpened or ground.
  For more information see: 41 00... BMW bonding instructions

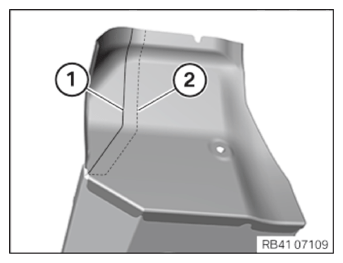

• Mark the separating cut (1) on the new part according to the separating cut (2) on the vehicle + 20 mm added material and cut.

  Courtesy of BMW OF NORTH AMERICA, INC.

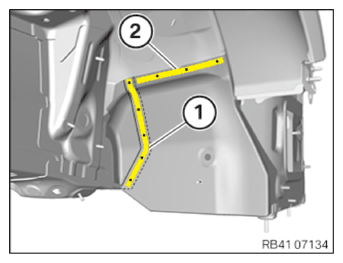

• Adjust the luggage compartment floor and secure.
• In areas (1) and (2), prepare for joining using the bonded rivet method.
• In areas (1) and (2), make 8 bores of 0 4.2 mm for blind rivets.

  Area	Number
  1	5
  2	3

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: To provide a better overview: Schematic diagram with partially hidden components.

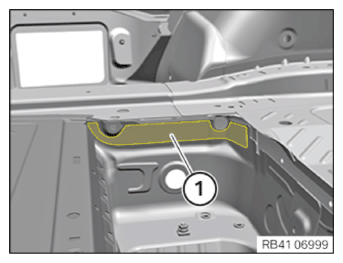

• Prepare area (1) for joining by glue rivet method.
• In area (1), make 6 bores of 0 4.2 mm for blind rivets.

  Courtesy of BMW OF NORTH AMERICA, INC.

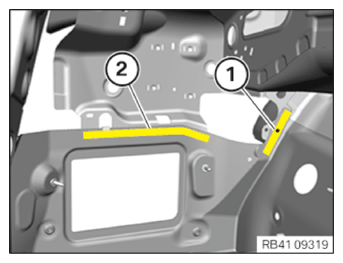

• Prepare areas (1) and (2) for joining using the bonded rivet method.
• In area (1), make a bore of 0 4.2 mm for a blind rivet.
• Remove new component. Deburr bores.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Replacing the coarse thread bolt and threaded weld bolts (steel surface)

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

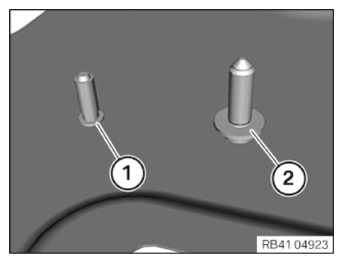

• Renew the coarse thread bolt (1) and the threaded weld bolt (2).

  Parts  : Coarse thread bolt, threaded weld bolt

  Take the number and position from the component to be replaced or the add-ons.

• Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check ground pins and replace if necessary

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

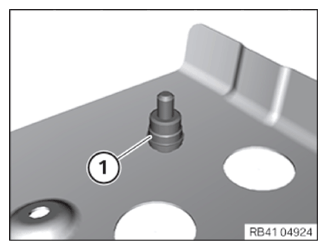

• Check the ground pins (1) for stability and renew if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Preparing center luggage compartment floor

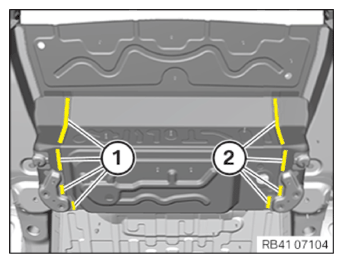

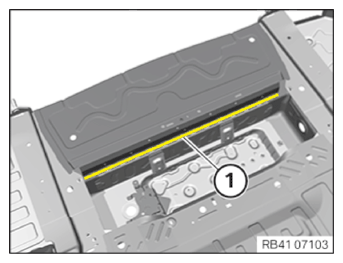

• Adjust the new parts in combination with the tail panel to fit and secure.

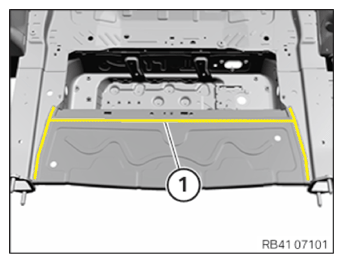

• Prepare area (1) for joining using welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

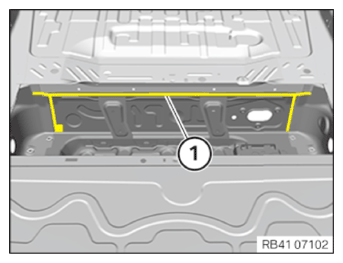

• Prepare area (1) for joining using welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare area (1) for joining using welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare area (1) for joining using welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare areas (1) and (2) for joining using welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Replacing the coarse thread bolt and threaded weld bolts (steel surface)

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
• Renew the coarse thread bolt (1) and the threaded weld bolt (2).

  Parts  : Coarse thread bolt, threaded weld bolt

  Take the number and position from the component to be replaced or the add-ons.

• Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check ground pins and replace if necessary

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

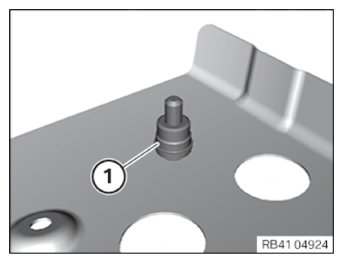

• Check the ground pins (1) for stability and renew if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.
