Installing The Left Luggage Compartment Floor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Clean bonding surfaces on vehicle and on new part with cleaning agent R1.CONSUMABLE SPECIFICATION
Cleaning agent R1 100 ml, Bottle 83192211217 - Apply adhesive K5 to the bonding surfaces.ADHESIVE SPECIFICATION
Body adhesive K5 50 ml 83192158654 NOTE: TECHNICAL INFORMATION

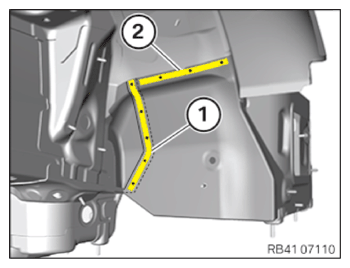

When installing the new part, make sure that all bonding surfaces have sufficient adhesive. - Install the new part and rivet it in the areas (1) and (2) with blind rivets N3.CONSUMABLE SPECIFICATION
Blind rivet N3

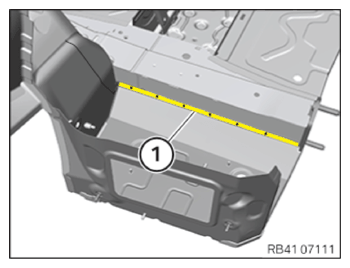

ø 4 mm; clamping area 1-3 mm83190301421 NOTE: To provide a better overview: Schematic diagram with partially hidden components. - Rivet the new part in the area (1) with blind rivet N3.
- In area (1), rivet the new part with blind rivet N3.

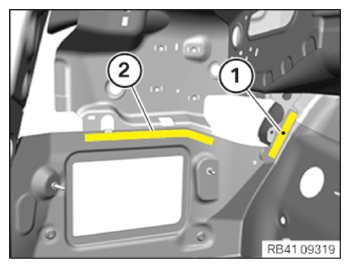

- In the area (2), use 3 x punch rivet N4.CONSUMABLE SPECIFICATION
Punch rivet N4
ø 3 mm; 4 mm long83192457307 Installing the EMC screw
- Drill a hole with a diameter of 4.2 mm.
In the case of glued connections, only drill the hole after the adhesive has fully hardened.
- Screw in the EMC screw.CONSUMABLE SPECIFICATION
EMC screw SF Plus M5x15 83190301639 - Seal the EMC screw with the sealant.CONSUMABLE SPECIFICATION

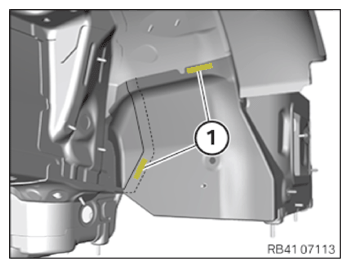

Sealant D1 (seam sealing) 310ml 83422409985 - After the adhesive has hardened in areas (1), install two EMC screws.CONSUMABLE SPECIFICATION
screw

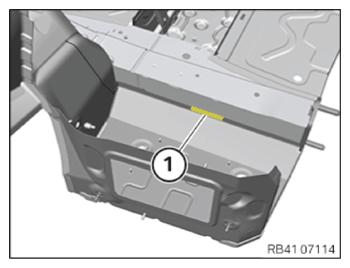

EMC screw, SF Plus, M5x1583190301639 NOTE: To provide a better overview: Schematic diagram with partially hidden components. - Install an EMC screw once the adhesive has hardened in area (1).CONSUMABLE SPECIFICATION
screw
EMC screw, SF Plus, M5x1583190301639
