Preparing New Part
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

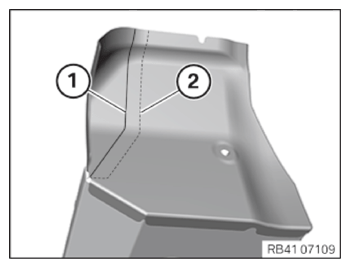

- Mark the separating cut (1) on the new part according to the separating cut (2) on the vehicle + 20 mm added material and cut.
- Adjust new part to fit and secure.

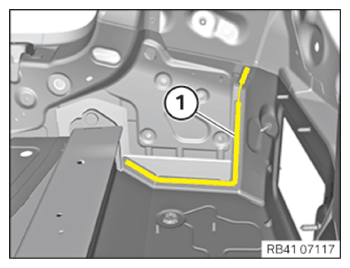

- Prepare area (1) for joining by welding.NOTE: To provide a better overview: Shown without side panel and without tail panel.

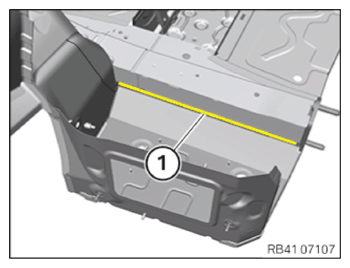

- Prepare area (1) for joining by welding.

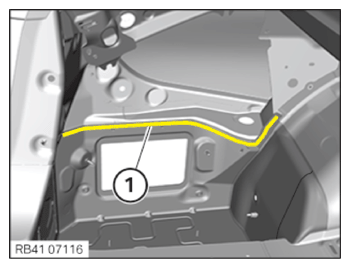

- Prepare area (1) for joining by welding.

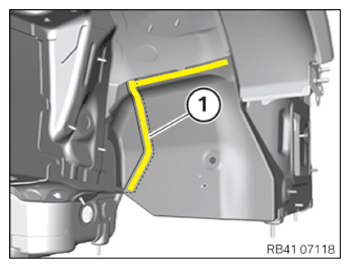

- Prepare area (1) for joining by welding.
Replacing the coarse thread bolt and threaded weld bolts (steel surface)

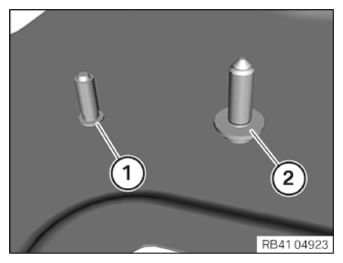

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts : Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.
Check ground pins and replace if necessary

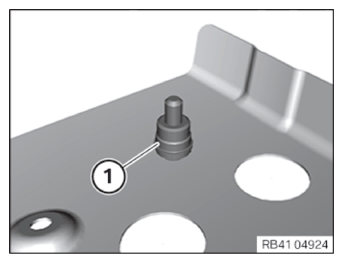

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Check the ground pins (1) for stability and renew if necessary.
