Installing The Left Luggage Compartment Floor

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

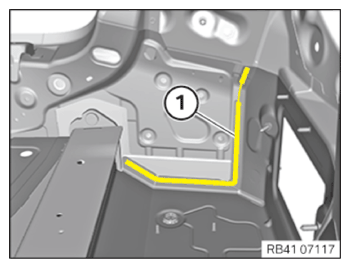

Install new part and weld in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

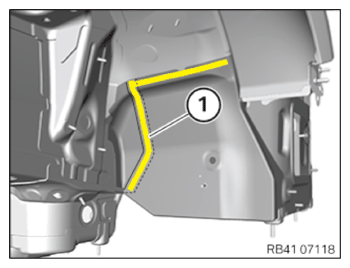

NOTE: To provide a better overview: Shown without side panel and without tail panel.
Weld the new part in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

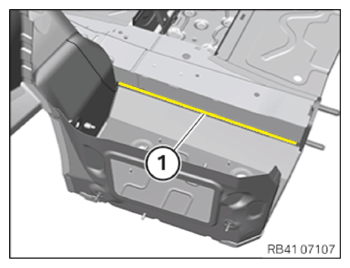

Weld the new part in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

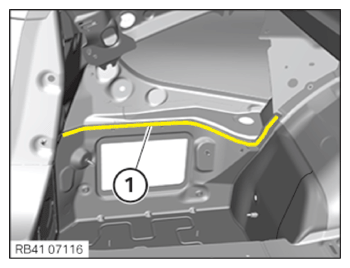

Weld the new part in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
