Preparing New Part

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Perform the separating cuts on the new part according to the separating cuts on the vehicle.
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Welding in reinforcement plates (sheet steel)
Prepare the reinforcement plates on the separating cuts.

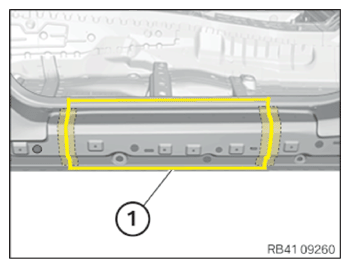

Adjust the new part and the reinforcement plates and prepare area (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
