Install Carrier Support
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Clean bonding surfaces on vehicle and on new part with cleaning agent R1.CONSUMABLE SPECIFICATION

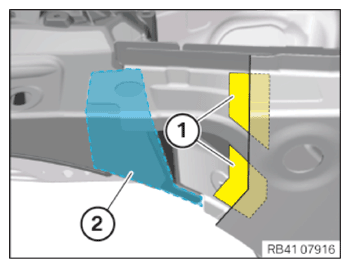

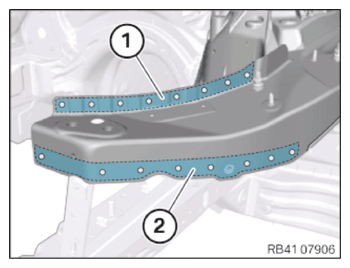

Cleaning agent R1 100 ml, Bottle 83192211217 - Apply adhesive K1 to the bonding surfaces (1).ADHESIVE SPECIFICATION
Body adhesive K1 195 ml 83190413015 - Join the new parts and rivet the in the areas (1) with blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1
ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Apply adhesive K1 to bonding surfaces.
- Install the new parts with an alignment bracket or a universal mount.
During the installation, ensure there is sufficient adhesive on bonding surfaces.

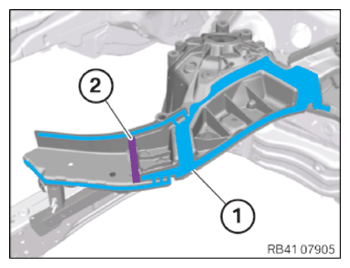

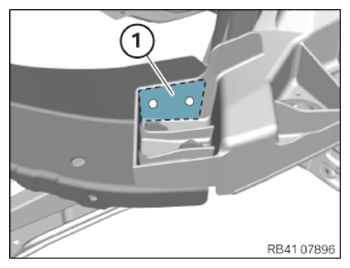

- Rivet the new part and engine mount (2) in area (1) with blind rivets N2.CONSUMABLE SPECIFICATION
Blind rivet N2

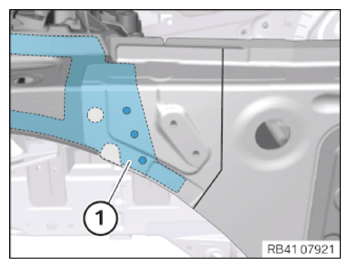

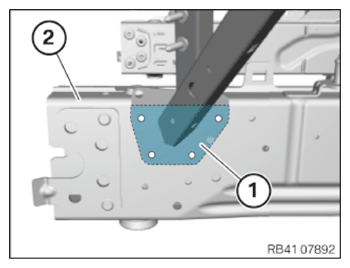

ø 6.5 mm; clamping area 4.8-6.8 mm83190301419 - Rivet the new part in the area (1) with blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1
ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Rivet the new part in the area (1) with blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1
ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 NOTE: TECHNICAL INFORMATION

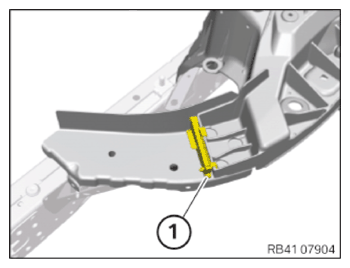

For additional information see: 41 00... Installation of a cavity sealing (not expanding) - Apply sealant D1to the cavity sealing (1) and install the cavity sealing.CONSUMABLE SPECIFICATION
Sealant D1 (seam sealing) 310 ml 83422409985 - Clean the bonding surface (1) with solvent cleaners R2 and R1.
- Apply adhesive K1 to the bonding surface.
- Apply sealant D1 to the cavity sealing (1).
- Install new part. During the installation, ensure there is sufficient adhesive on bonding surfaces.

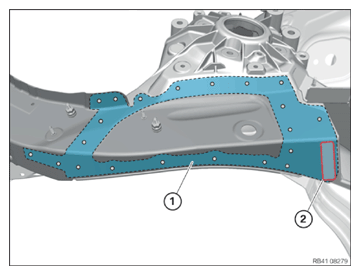

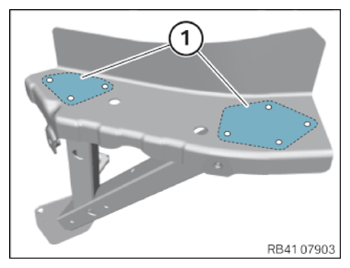

- Rivet the new parts in areas (1) and (2) with punch rivets N4 according to the diagram.
Area Description Number 1 N4 8 2 N4 8 CONSUMABLE SPECIFICATIONPunch rivet N4
ø 3 mm; 4 mm long83192457307 - Rivet the new part in the area (1) with blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1

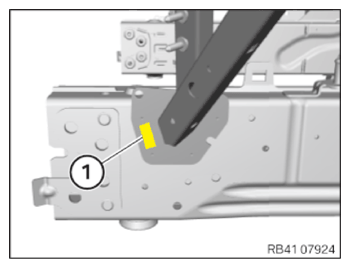

ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - In area (2), do not install a blind rivet yet.

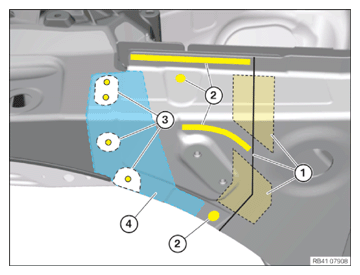

- Install the bulkhead new part (2) and reinforcement plate.
- Weld the separating cut (1), reinforcement plate and areas (3) and (4) according to the new part preparation process.
- Install the reinforcement plates (1) and attach by welding.

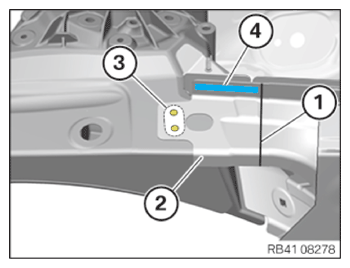

- Clean the bonding surface (2) with solvent cleaners R2 and R1.
- Apply adhesive K1 to the bonding surface (2).
- Install the new part section and weld it in the areas (1) through (3).
While doing so, observe the adhesive area (4) of the aluminum spring support.
Avoid high heat input in the bonded rivet connection (4).

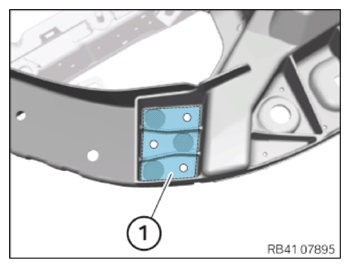

- Rivet the new part in the adhesive area (1) with 3 blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1
ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Install an EMC screw once the adhesive has hardened in area (1).CONSUMABLE SPECIFICATION
screw
EMC screw, SF Plus, M5x1583190301639
