Remove Engine Mount
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
For additional information see: Open riveted joints (41 00).
For additional information see: Open riveted joints (41 00).

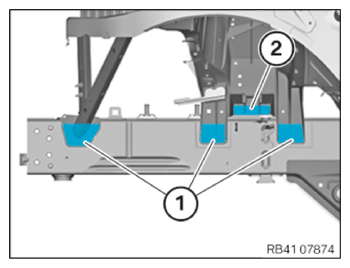

- Release the self-tapping screws in the areas (1) and rivet connectors in the area (2).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections - Heat the bonded connections in the areas (1) and (2) and release them.
Do not damage the aluminum spring support and carrier support in the process!

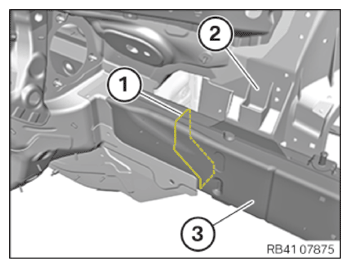

- Perform the separating cut (1) as shown.
Do not damage aluminum spring support (2) in the process!
- Remove the engine mount section (3).

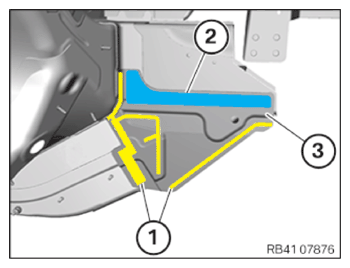

- Loosen welded connections in areas (1).
- Release the self-tapping screws in the area (2).
- Heat the bonded connection in the area (2) and release it.
- Remove reinforcement (3).

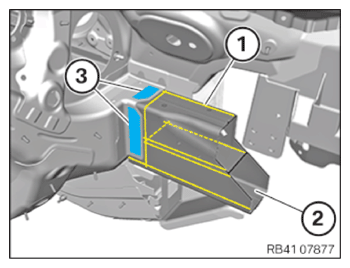

- Carry out separating cuts (1) as shown and separate the engine mount (2) in sections,
- Release the rivet connectors in the areas (3),
- Heat the bonded connections in the areas (3) and release them.

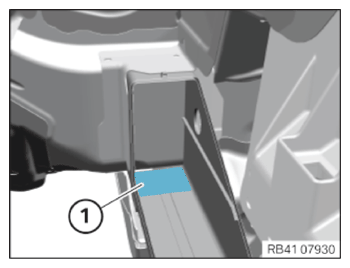

- Heat the bonded connection in the area (1) and release it.

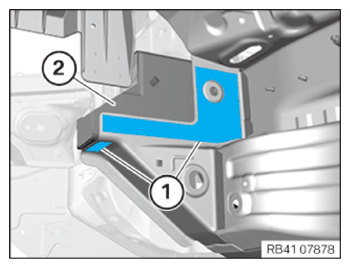

- Release the self-tapping screws in the areas (1).
- Heat the bonded connections in the areas (1) and release them and remove the engine mount (2).
