Insert Engine Mount
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Clean bonding surfaces on vehicle and on new part with cleaning agent R1.CONSUMABLE SPECIFICATION
Cleaning agent R1 100 ml, Bottle 83192211217 - Apply adhesive K1 to the bonding surfaces.ADHESIVE SPECIFICATION
Body adhesive K1 195 ml 83190413015 - Install the new parts with an alignment bracket or a universal mount.
During installation, ensure that sufficient adhesive has been applied to all bonding surfaces.

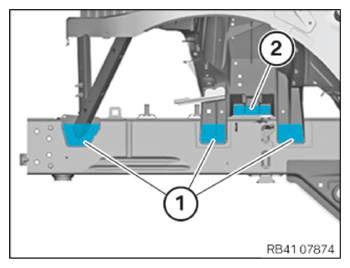

- Rivet the new parts in the areas (1) with 3 blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1
ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Rivet the new part in the areas (1) and (2) with blind rivets N2,CONSUMABLE SPECIFICATION
Blind rivet N2

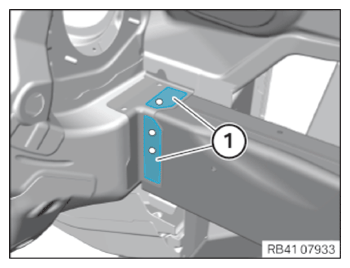

ø 6.5 mm; clamping area 4.8-6.8 mm83190301419 - Rivet the new part in the areas (1) with blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1

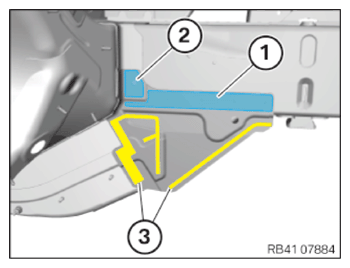

ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Position the new part and rivet it in the area (1) with N1 blind rivets.CONSUMABLE SPECIFICATION
Blind rivet N1

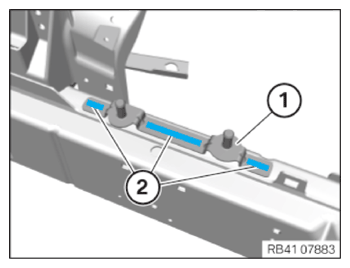

ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Rivet the new parts in the area (2) with blind rivet N2.CONSUMABLE SPECIFICATION
Blind rivet N2
ø 6.5 mm; clamping area 4.8-6.8 mm83190301419 - Weld the new part in areas (3).
Avoid excessive application of heat to adhesive areas

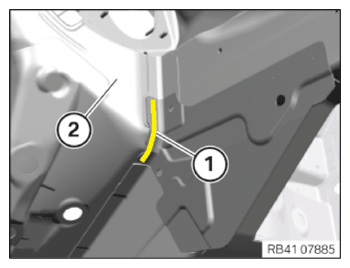

- Weld the new part in the area (1).
Avoid excessive application of heat in this process.
The cowling cross-member (2) is filled with hardly inflammable cavity foam.
- In case of smoke formation: Stop the welding procedure and cool the welded area with compressed air if applicable.

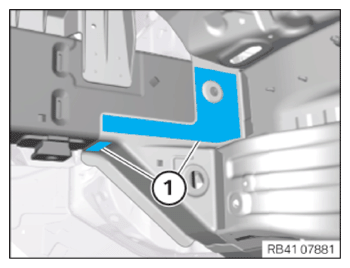

- Rivet the holder (1) in the area (2) with blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1

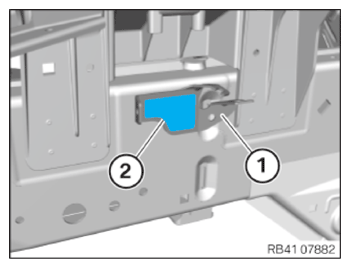

ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Rivet the holder (1) in the areas (2) with blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1
ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 Installing the EMC screw
- Drill a hole with a diameter of 4.2 mm.
In the case of glued connections, only drill the hole after the adhesive has fully hardened.
- Screw in the EMC screw.CONSUMABLE SPECIFICATION
EMC screw SF Plus M5x15 83190301639 - Seal the EMC screw with the sealant.CONSUMABLE SPECIFICATION

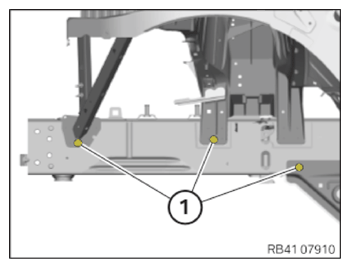

Sealant D1 (seam sealing) 310ml 83422409985 - Use 3 EMC screws after the adhesive hardens in the areas (1).CONSUMABLE SPECIFICATION
screw
EMC screw, SF Plus, M5x1583190301639
