Supplying The New Parts Required
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Vehicle is secured on the straightening bench.NOTE: TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
- Observe the procedure for repair stage 3.
Preliminary work
Follow-up work

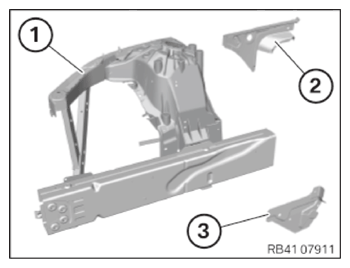

- Prepare the following new parts (see Electronic Parts Catalog [EPC]):
Front wheel arch
Extension of the wheel well carrier support (2)
Reinforcement of engine mount, inner (3)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
Material Quantity Adhesive K1 1 Blind rivet N1 45 Blind rivet N2 5 Coarse thread bolt 5 Earth pin 5 EMC screw 2 Cleaning agent R1 1 Cleaning agent R2 1 Sealing compound D1 1 Cavity protection wax remover 1
