Removing Engine Mount In Front Of Bulkhead With Wheel Arch

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

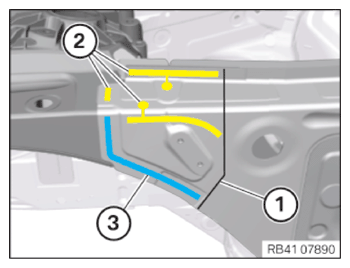

Make the separating cut (1) according to the schematic diagram. Thereby disconnect only the outer panel.
Loosen welded connections in areas (2).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Spot-weld bonding steel components

Courtesy of BMW OF NORTH AMERICA, INC.
Release the spot-welded adhesive joints in the area (3) and remove the carrier support section.

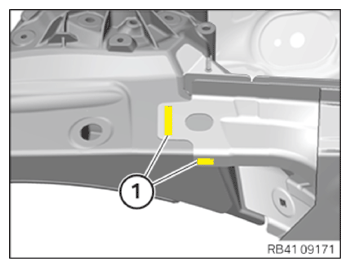

Release welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

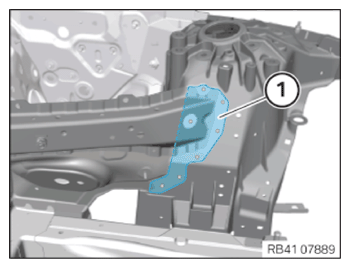

Open bonded rivet connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

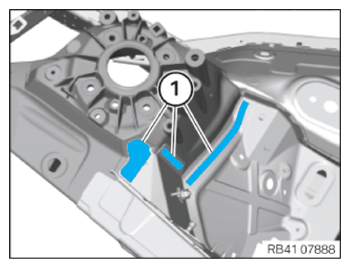

Loosen the bonded rivet connection joints in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

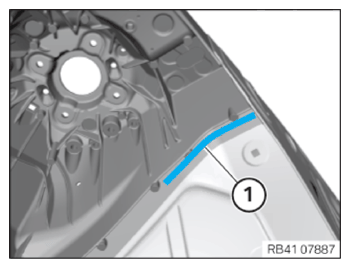

Open bonded rivet connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

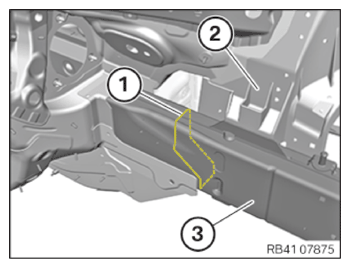

Mark the rough severance cut (1) according to the schematic diagram and cut.
Remove the wheel arch (2) along with the engine mount section (3).

Courtesy of BMW OF NORTH AMERICA, INC.

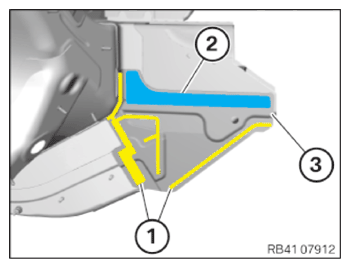

Loosen welded connections in areas (1).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections
Loosen self-tapping screws and bonded connection in area (2).
Remove reinforcement (3).

Courtesy of BMW OF NORTH AMERICA, INC.

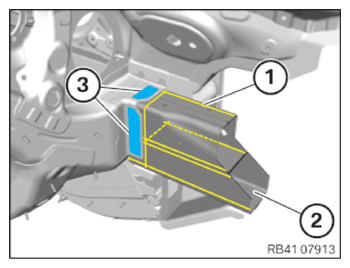

Perform a separating cut (1) according to the diagram and disconnect the engine mount (2) section by section.
Loosen the bonded rivet connection joints in the areas (3).

Courtesy of BMW OF NORTH AMERICA, INC.

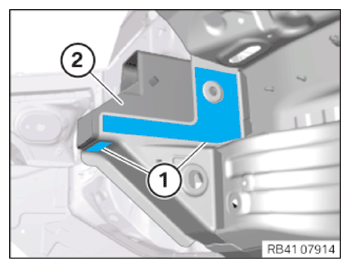

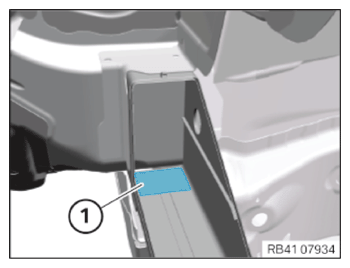

Release bonded connection in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the self-tapping screws and bonded connections in the areas (1) and remove the engine mount (2).

Courtesy of BMW OF NORTH AMERICA, INC.
