Install Engine Mount In Front Of Cowling With Wheel Arch
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

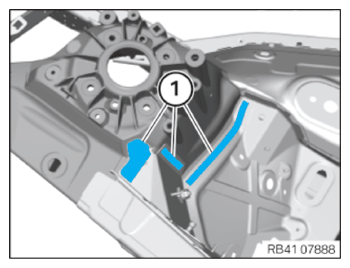

- Preclean all bonding surfaces with solvent cleaner R2.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Clean all bonding surfaces with solvent cleaner R1.CONSUMABLE SPECIFICATION

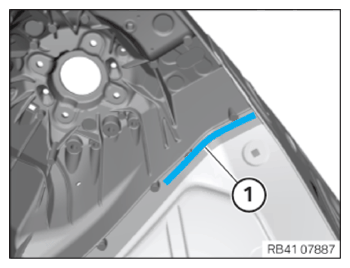

Cleaning agent R1 100 ml, Bottle 83192211217 - Apply adhesive K1 to bonding surfaces.ADHESIVE SPECIFICATION
Body adhesive K1 195 ml 83190413015 - During installation of the new parts, make sure that sufficient adhesive has been applied to all bonding surfaces.
- Install the new part with an alignment bracket or a universal fixture.

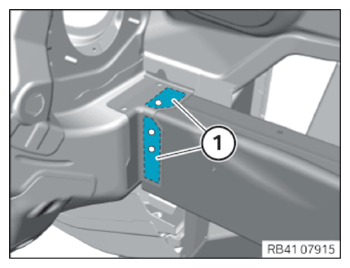

- Rivet the new parts in the areas (1) with three blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1
ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Rivet the new part in the area (1) and (2) with blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1
ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Install new part and rivet in area (1) with blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1
ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Rivet the new parts in the area (2) with blind rivet N2.CONSUMABLE SPECIFICATION
Blind rivet N2

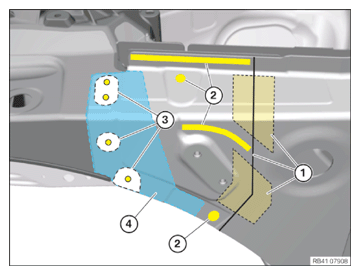

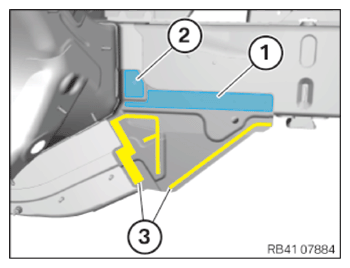

ø 6.5 mm; clamping area 4.8-6.8 mm83190301419 - Weld the new part in the areas (3).
Avoid excessive application of heat to adhesive areas

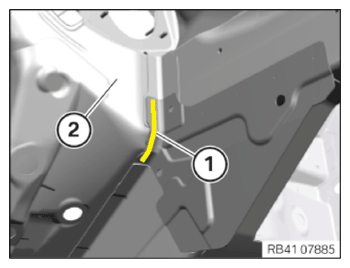

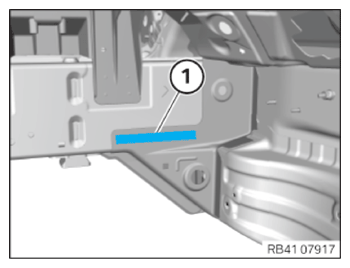

- Weld the new part in the area (1).
Avoid excessive application of heat in this process.
The cowling cross-member (2) is filled with hardly inflammable cavity foam.
- In case of smoke formation: Stop the welding procedure and cool the welded area with compressed air if applicable,

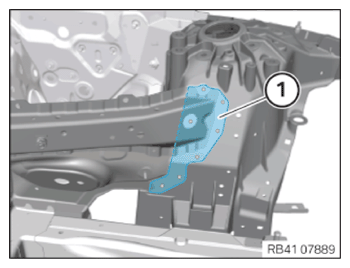

- Rivet the new part in the areas (1) and (2) with blind rivets N1,CONSUMABLE SPECIFICATION
Blind rivet N1

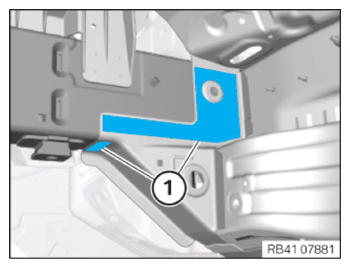

ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Rivet the new part in the areas (1) with blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1
ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Rivet the new part in the areas (1) with blind rivets N1.CONSUMABLE SPECIFICATION
Blind rivet N1

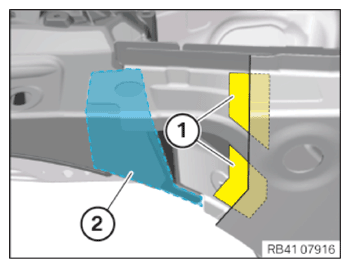

ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Install the reinforcement plates (1) and attach by welding.
- Observe the bonding surface (2) of the aluminum spring support.
- Install the new part section and weld it in the areas (Dto (3).
- While doing so, observe the adhesive area (4) of the aluminum spring support.
Avoid applying too much heat to adjacent adhesive area (4).

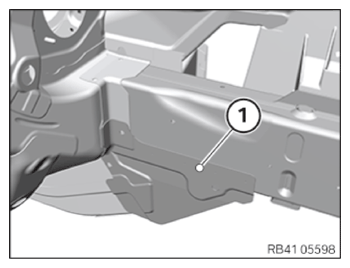

- Install an EMC screw in area (1).CONSUMABLE SPECIFICATION
screw
EMC screw, SF Plus, M5x1583190301639 - Install an EMC screw in area (1).CONSUMABLE SPECIFICATION
screw
EMC screw, SF Plus, M5x1583190301639
