Fix Bolt On New Part Rep-Rep-RAGRP41-4105_BOLZEN - V.4 (M4 2021-2023)

Single ball/double ball (version 1)  :

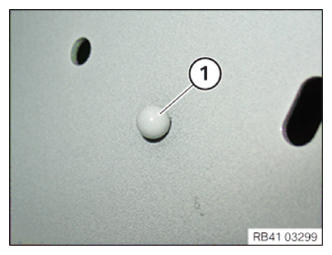

Grind off any residues of the single ball (1), if applicable.

Drill hole with diameter 7 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

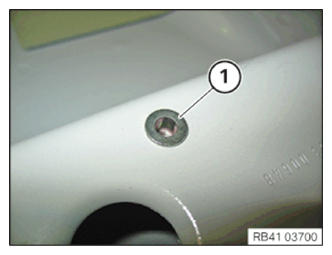

Set blind rivet nut (1).

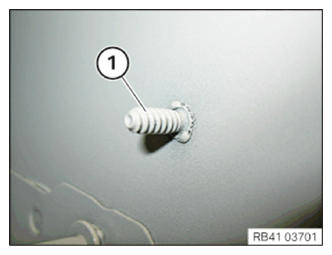

Screw in single ball with thread until a height of 5 mm (double ball 10 mm) is reached.

Courtesy of BMW OF NORTH AMERICA, INC.

Single ball/double ball (version 2)  :

Grind off any residues of the single ball (1), if applicable.

Clean area with solvent cleaner R1.

Courtesy of BMW OF NORTH AMERICA, INC.

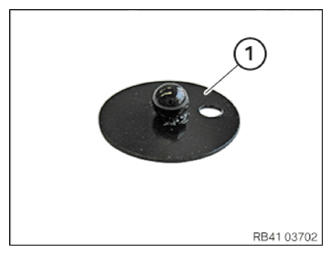

Clean bonding surface of repair element single ball (1) with solvent cleaner R1.

Bond repair element optionally with adhesive K1, K5 or window pane adhesive at the same position.

Courtesy of BMW OF NORTH AMERICA, INC.

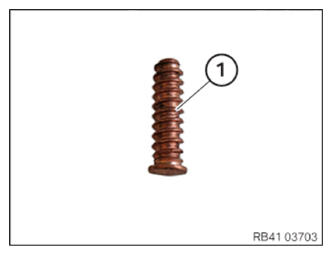

Coarse threaded bolt (version 1):

Grind off any residues of the coarse threaded bolt (1), if applicable.

Courtesy of BMW OF NORTH AMERICA, INC.

Spot weld coarse threaded bolt to same position.

Courtesy of BMW OF NORTH AMERICA, INC.

Coarse threaded bolt (version 2)  :

Grind off any residues of the coarse threaded bolt (1), if applicable.

Drill hole with diameter 7 mm.

Set blind rivet coarse threaded bolt using riveting pliers.
