Replacing the LED module of the front door opener
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

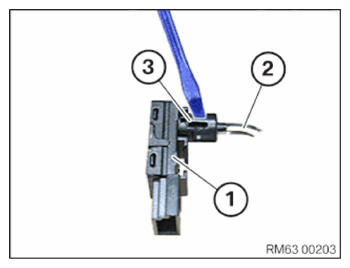

- Release the lock (3) with a screwdriver (blade with 3 mm) on the LED module (1). Pull out the fiber-optic conductor (2) while doing so.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Replace the LED module (2).
Parts:
LED module

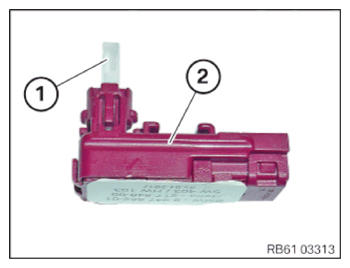

- Carefully clip in the fiber-optic conductor (1) into the LED module (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
