Install the LED module of the front door handle
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

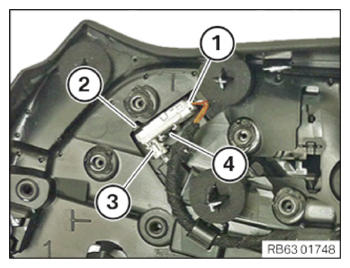

- Position the LED module together with the fiber optic cable (3) correct on the bracket (4) and engage it in the detent (2).
- Connect connector (1).
Follow-up work
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
- Refer to ADDRESSING THE LED MODULE .
