Replacing the LED module of the front door pocket
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

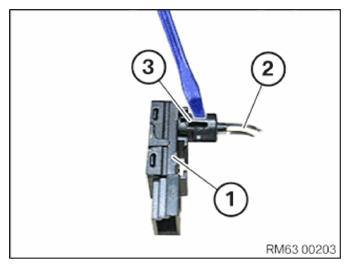

- Release the lock (3)
with a screwdriver (blade of 3 mm) from the LED module (1)
. Whiled doing so, pull out the fiber-optic conductor (2)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Replace the LED module (2)
.
Parts:
LED module

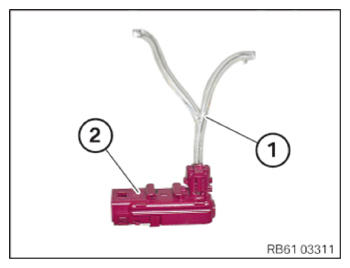

- Clip the fiber-optic conductor (1)
into the LED module (2)
carefully.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
