Remove the front folding compartment LED module
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING FRONT DOOR TRIM PANEL .

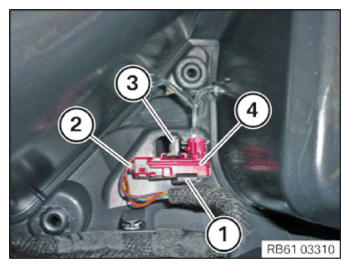

- Unlock plug connection (2) and disconnect.
- Release detent (1).
- Remove the LED module (4) with the fiber-optic conductor from the holder (3).
