Installing the folding compartment LED module
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

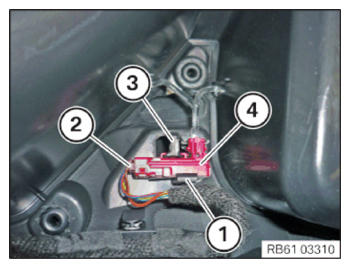

- Position the LED module (4) with the fiber-optic conductor correctly on the holder (3) and snap it into the lock (1).
- Connect connectors (2) and lock.
Follow-up work
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
- Refer to ADDRESSING THE LED MODULE .
