Removing the LED in center armrest storage compartment
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Center armrest cover is open.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
- Protect surfaces from damage.
Preliminary work

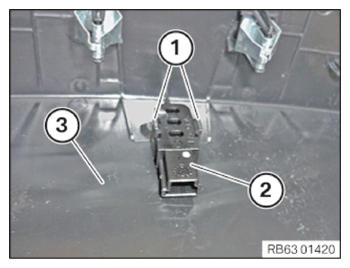

- Unlock the detents (1).
- Remove the LED (2) from the storage compartment trim (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
