Install interior roof light

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Check

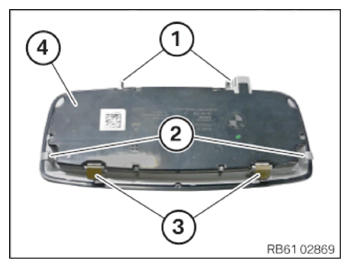

Check the guides (1), clamps (3) and detents (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The guides (1), clamps (3) and detents (2) are damaged.

Measure
- Replace the interior roof light (4).

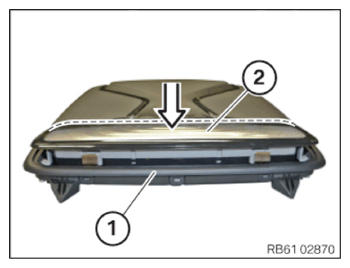

Insert the interior roof light (2) in the marked area.
Engage the interior roof light (2) in the frame (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
