Section 283 (Lights -- Repair M4 (G82 & G83))
>>
63 31 Interior Lighting
>>
63 31 080 Removing and installing/replacing trunk compartment light (M4 Convertible)
>>
Install trunk compartment light
Install trunk compartment light
WARNING:
This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

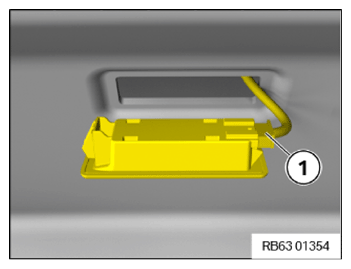

Connect connectors (1) and lock.
Courtesy of BMW OF NORTH AMERICA, INC.

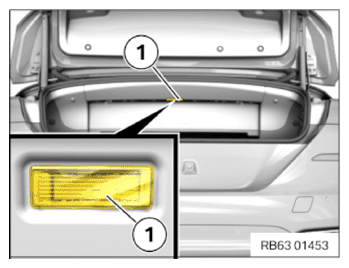

Clip in the trunk compartment light (1).
Courtesy of BMW OF NORTH AMERICA, INC.
