Install headlight

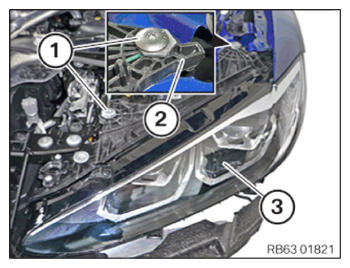

• Insert the headlight (3) from the front and clip it in with the detent (2).
• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Front light combination, top
  Oval-head screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

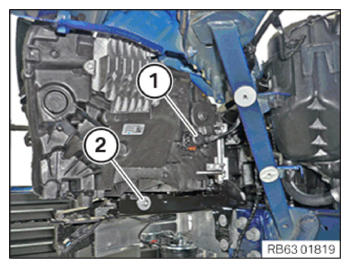

• Secure connector holder (1) to the headlight.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Front light combination, bottom
  Oval-head screw	Tightening torque	5 Nm

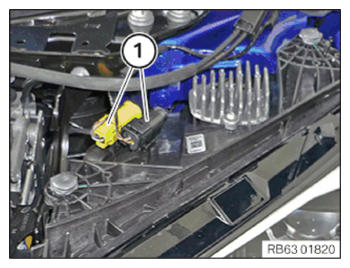

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

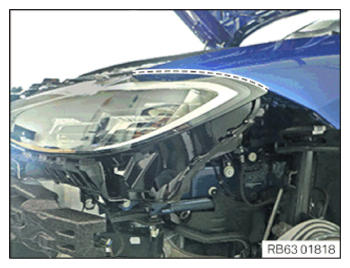

• Remove adhesive tape in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING THE FRONT LEFT AND RIGHT WHEEL ARCH TRIM PANELS .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to WHEN REPLACING LASER HEADLIGHTS: PROGRAM/ENCODE THE INTEGRATED LASER CONTROL UNIT .
• Refer to ADJUSTING HEADLIGHTS .
