Remounting (basic) the control unit for the Front Light Electronics (FLE)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Removing the control unit for the Front Light Electronics (FLEL) (LED basic)

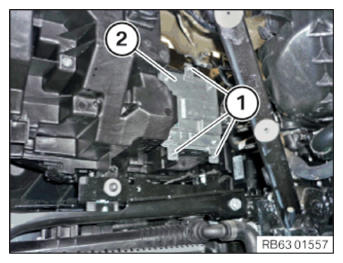

- Loosen screws (1).

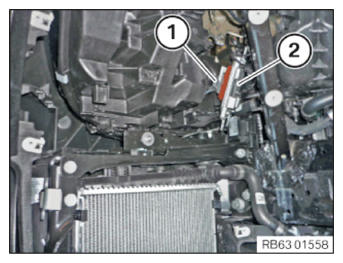

- Feed out the control unit for the Front Light Electronics (FLEL) (2).

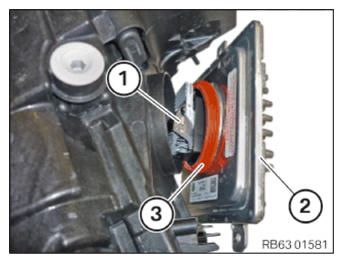

- Unlock plug connection (1) and disconnect.
- Remove the control unit for the Front Light Electronics (FLEL) (2).
Installing the Front Light Electronics (FLEL) control unit (LED basis)
- Check seal (3) for damage and replace if necessary.
- Position the Front Light Electronics (FLEL) control unit (2).
- Connect connectors (1) and lock.
- Feed in the Front Light Electronics (FLEL) control unit (2) and correctly position.
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Front Light Electronics control unit on headlight | ||
| Screw | tightening torque | 1.5 Nm |
