Install right headlight

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

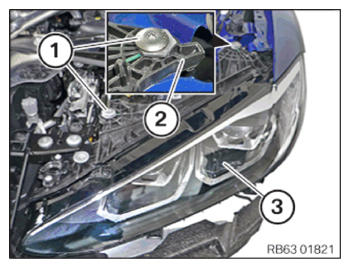

Insert the headlight (3) from the front and clip it in with the detent (2).

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Front light combination, top
Oval-head screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

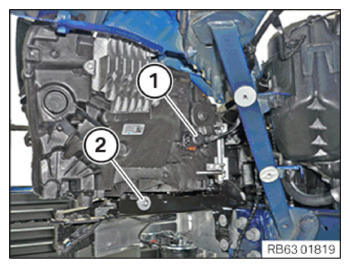

Secure connector holder (1) to the headlight.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

Front light combination, bottom
Oval-head screw	Tightening torque	5 Nm

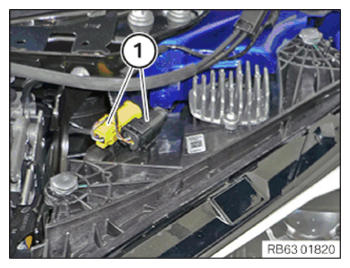

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove adhesive tape in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING BUMPER COVER, FRONT .
Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
Refer to PARTIALLY INSTALLING THE FRONT LEFT AND RIGHT WHEEL ARCH TRIM PANELS .
Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to PROCESSING THE LED HEADLIGHT SERVICE TEST MODULE .
Refer to ADJUSTING HEADLIGHTS .
