Remounting the headlight bracket

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing headlight brackets

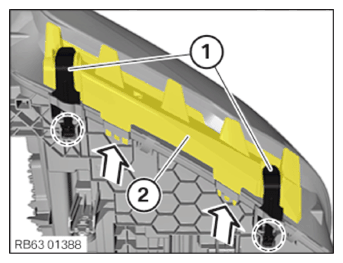

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Unclip retaining clips (1) in the marked areas and remove them to the front.
Remove holder (2) on the headlight to the front in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the bracket on the headlight

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Position the holder (2) on the headlight against the arrow direction and snap it in.
Clip in the retaining clips (1) in the marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.
