Remove accelerator pedal module
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

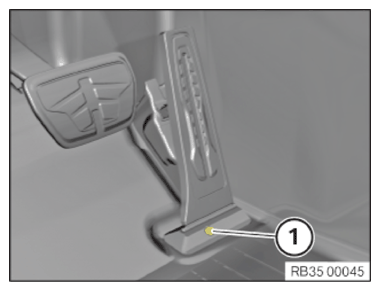

- Lever out cover (1) towards the top.
- Release the hexagon socket screw (1).

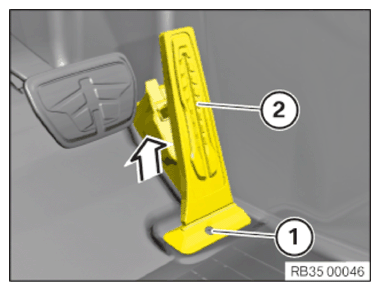

- Feed out the accelerator pedal module (2) upwards (see following step).
- Lift the accelerator pedal module (1) at the bottom approx. 2 cm to feed out the holder (2).
- Push the accelerator pedal module (1) out of the holder (3) in the arrow direction (diagonally upwards)!

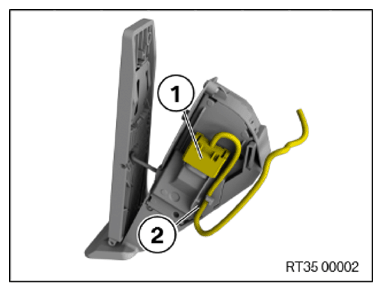

- Unlock plug connection (1) and disconnect.
- Guide wiring harness out of bracket (2).
