Install the rear vertical acceleration sensor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

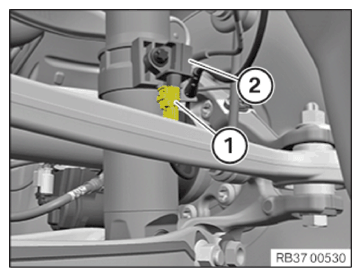

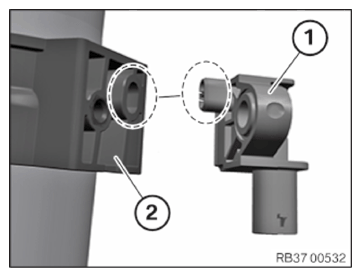

- Position the rear vertical acceleration sensor (1) in holder (2).
- Tighten screw (1) on the rear vertical acceleration sensor (2).
TIGHTENING TORQUE SPECIFICATIONS
| Vertical acceleration sensor to spring strut shock absorber | ||
| M6 | tightening torque | 9 Nm |

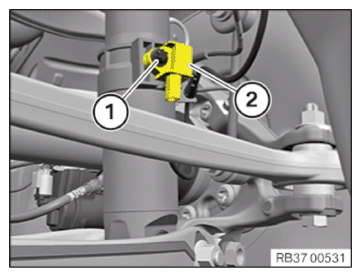

- Connect and lock connector (1) on the rear vertical acceleration sensor (2).
Follow-up work
- Refer to MOUNTING THE REAR RIGHT WHEEL .
