Install the front vertical acceleration sensor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

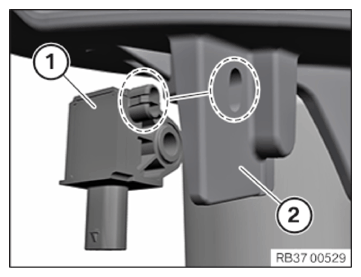

- Position the front vertical acceleration sensor (1) on the holder (2).
- Tighten the screw (1) on the front vertical acceleration sensor (2).
TIGHTENING TORQUE SPECIFICATIONS
| Vertical acceleration sensor to spring strut shock absorber | ||
| M6 | tightening torque | 9 Nm |
- Connect the connector (1) to the front vertical acceleration sensor (2) and lock it.
Follow-up work
- Refer to ATTACHING THE FRONT LEFT WHEEL .
