Installing the VDP control unit
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

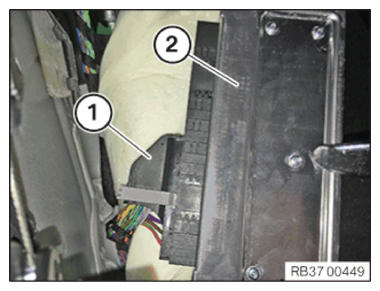

- Connect and lock the connector (1) on the VDP control unit.
- Tighten the nuts (2).
TIGHTENING TORQUE SPECIFICATIONS
| VDP control unit to body | ||
| Plastic nut Replace plastic nut. | tightening torque | 2.6 Nm |

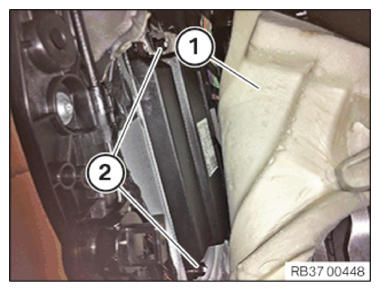

- Fold back the carpet in the footwell (1).
Follow-up work
- Refer to INSTALLING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to CONNECTING ALL BATTERY GROUND LEADS . .
- Refer to CARRYING OUT RIDE HEIGHT ADJUSTMENT .
