Remove ride height sensor, front

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly .
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .

NOTE: RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .

NOTE: TECHNICAL INFORMATION
After the expansion or exchange of the ride height sensor or of the attachment rod of the ride height sensor and after the replacement of the control unit for the vertical dynamic platform (VDP), a ride height adjustment must always be carried out.

NOTE: Description is for left component only. Procedure on the right side is identical.

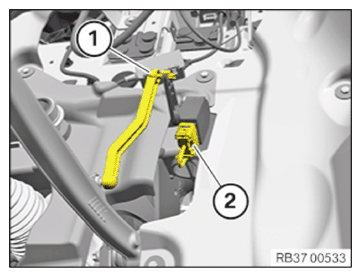

Unclip the attachment rod (1).
Unlock plug connection (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

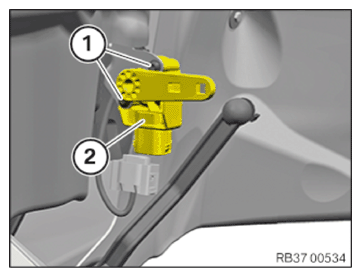

Loosen screws (1).
Remove the front ride height sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.
