Replacement of the windshield washer pump

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .

Preliminary work

Refer to REMOVING THE WHEEL .
Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
Refer to REMOVING WASHER FLUID RESERVOIR .

Remove windshield washer pump

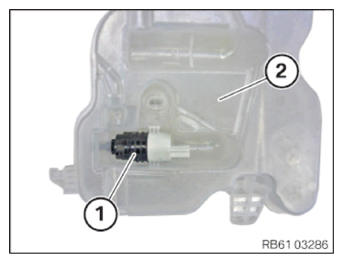

Pull windshield washer pump (1) out of washer fluid reservoir (2).

Courtesy of BMW OF NORTH AMERICA, INC.

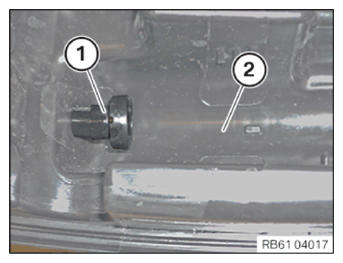

Pull strainer with gasket (1) out of the washer fluid reservoir (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the window washer pump.

Parts: Windshield washer pump

Installing the window washer pump

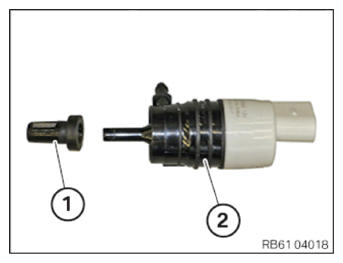

Check strainer with seal (1) and pump (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.
Join strainer with gasket (1) into the washer fluid reservoir (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Join windshield washer pump (1) into washer fluid reservoir (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING WASHER FLUID RESERVOIR .
Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
Refer to MOUNTING THE WHEEL .
