Installing the wiper console

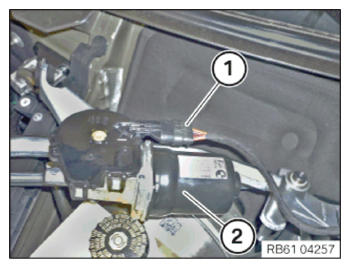

• Position the wiper console (2).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

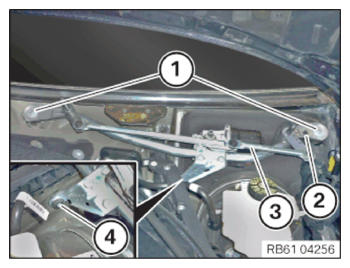

• Guide the wiper console (3) into the guide (4) and position correctly.
• Clip in the cable bracket (2).
• Replace and tighten the nuts (1).

  Parts:  Nuts

  TIGHTENING TORQUES SPECIFICATION



  Wiper console to body
  Nut M8 Replace nut.	tightening torque	11.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

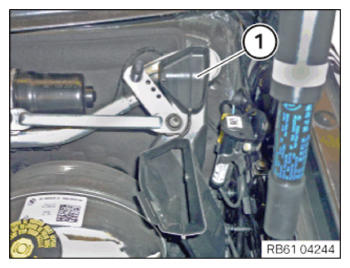

• Guide in and clip in the water drain channel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
