Installing the driver's seat module (SMFA)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

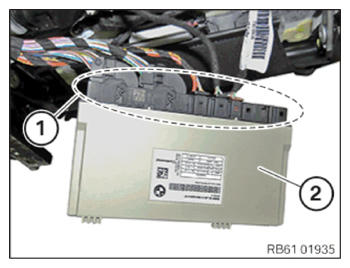

Connect connector (1).
Position SMFA (2) in the holder.

Courtesy of BMW OF NORTH AMERICA, INC.
Press the driver's seat module (SMFA) (2) into the holder until snap-in lugs (1) engage.

G15340471

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING FRONT SEAT .
Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
